Geared elevator motors built for durability and performance

Milano Gear has produced geared elevator motors since 2010, backed by 25 years of manufacturing experience. Explore the ML5 and Milano Plus series and their full technical data.

Browse the catalogueContact us

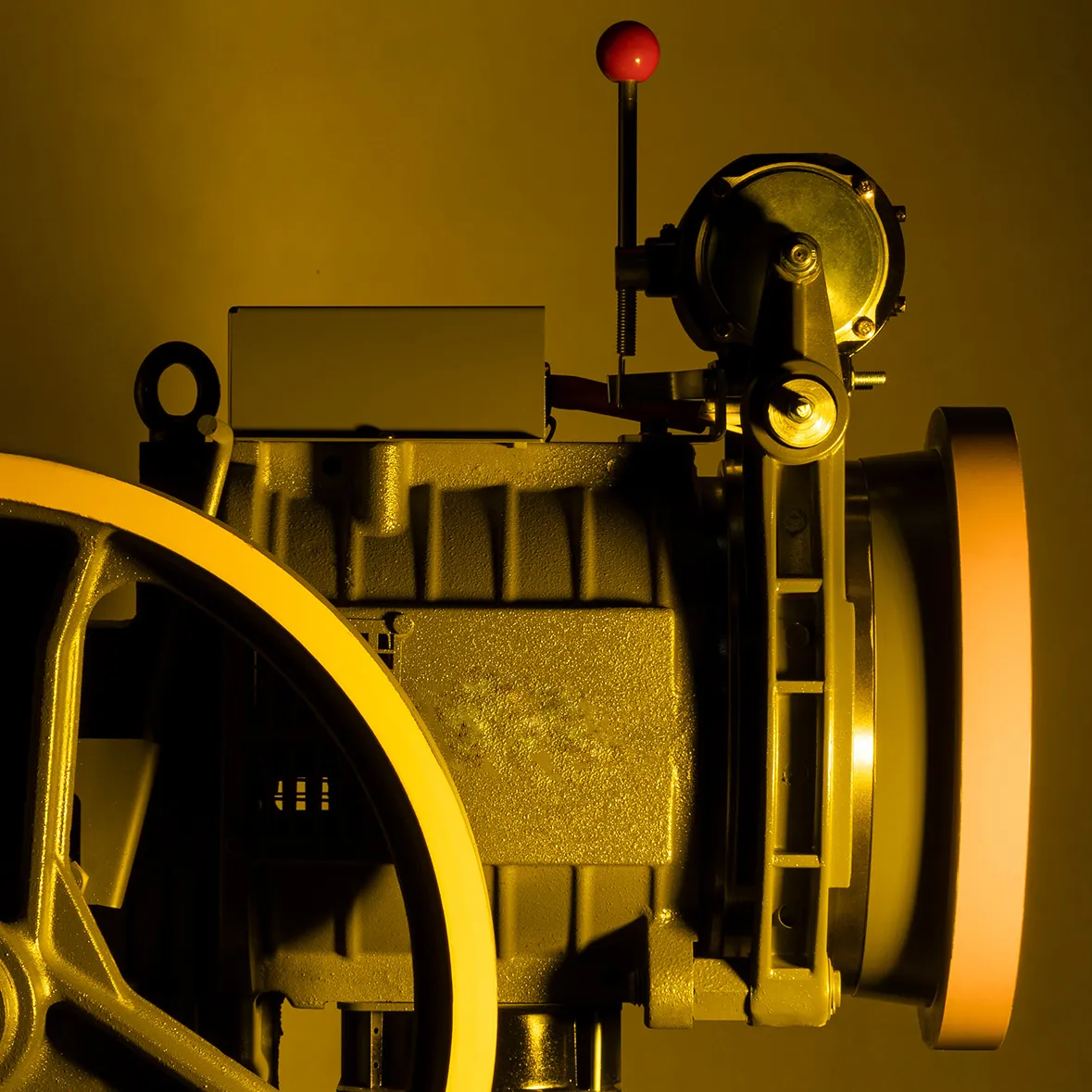

Milano Gear geared elevator motor with brake and hand release lever, lit in amber

Milano Gear

Geared motors since
2010
CE certified
Feb 2011
Quality management
ISO 9001
Environmental management
ISO 14001

  • Standard and unique motors

    A specialized, experienced team focused on innovation in both standard motors and unique designs.

  • Academic and industrial expertise

    Scientific capability and industrial technical expertise, developed together within a single framework.

  • Durability and performance

    High-quality elevator gear solutions, designed to last and to perform.

Elevator motors

Two series of geared elevator motors, each available in several power and load configurations.

Compare all configurations Download catalogue (PDF, 2.6 MB)

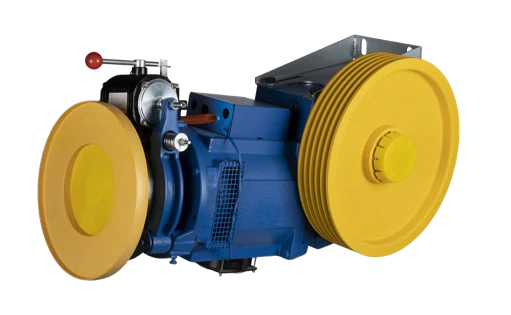

ML5 elevator motor, three-quarter view with blue housing and yellow traction sheave

Elevator motor

ML5

Geared elevator motor in three configurations from 6.1 to 9.2 kW, for loads of 450 to 600 kg and speeds up to 1.45 m/s.

3 configurations

Power
6.1–9.2 kW
Load
450–600 kg
Traction sheave
Ø450 mm
Gearbox ratio
2:71 or 3:71
ML5 specifications

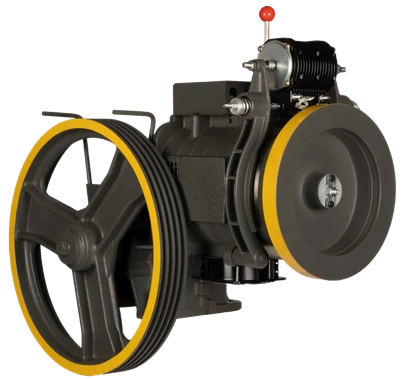

Milano Plus elevator motor, three-quarter view with dark housing and spoked traction sheave

Elevator motor

Milano Plus

Geared elevator motor in two configurations, 6.1 and 7.3 kW, for loads of 450 and 600 kg at speeds up to 1.00 m/s.

2 configurations

Power
6.1–7.3 kW
Load
450–600 kg
Traction sheave
Ø550 mm
Gearbox ratio
1:43
Milano Plus specifications

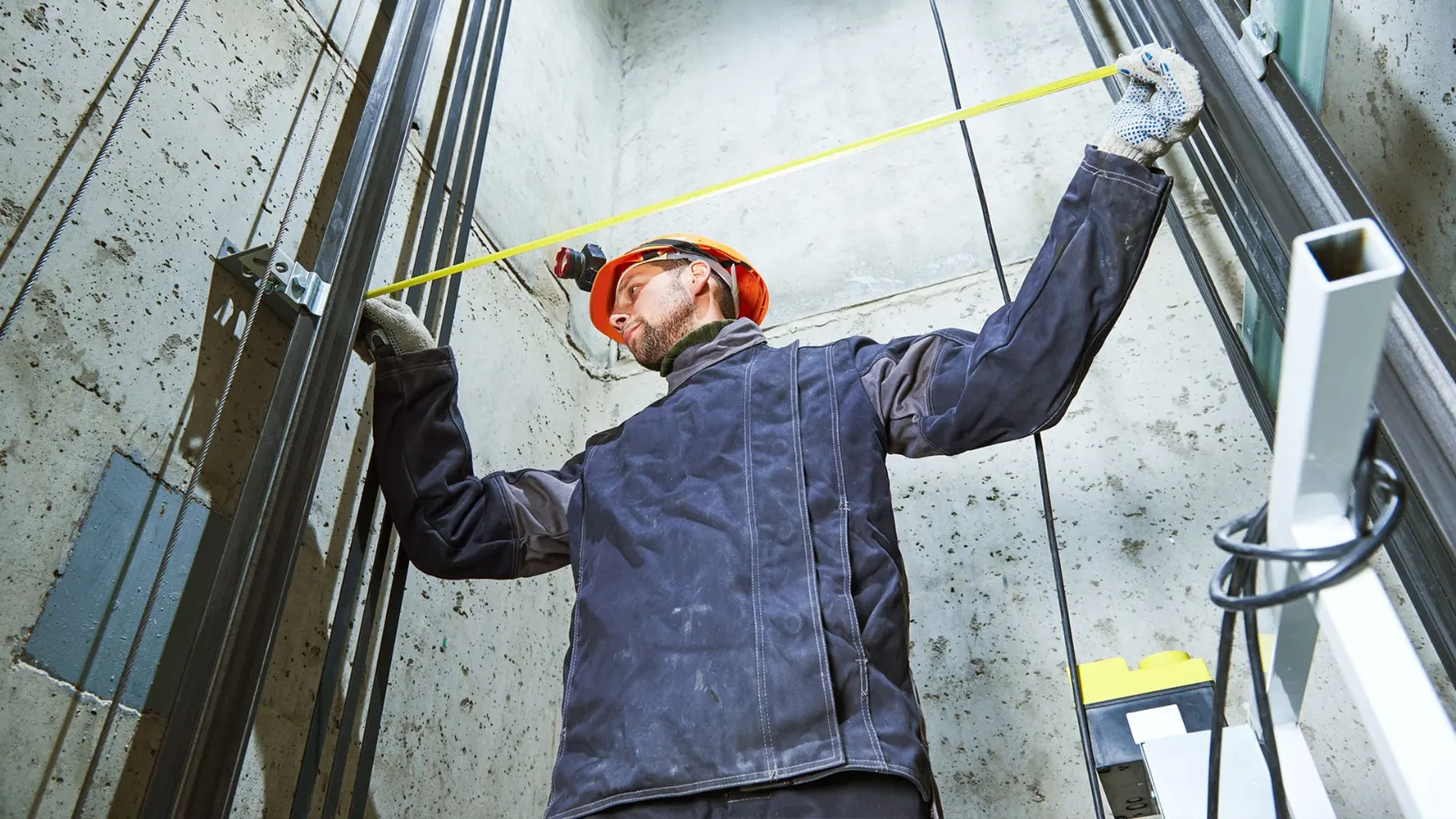

Technician measuring an elevator shaft with a tape measure

About Milano Gear

With 25 years of experience in manufacturing, Milano Gear began producing geared elevator motors in 2010. That same year it produced its first fully Italian-made motor and presented it for testing to the relevant organizations and authorities.

Our specialized, experienced team aims to build a knowledge-based group focused on innovation in standard and unique motors.

Our history

Certifications

Since February 2011 Milano Gear has held the European Union’s CE certification, together with ISO 9001 and ISO 14001.

  • CE

    European Union certification, obtained February 2011

    Conformity with EU requirements for products sold in the European Economic Area.

  • ISO 9001

    Quality management

    The international standard for quality management systems.

  • ISO 14001

    Environmental management

    The international standard for environmental management systems.

Need specifications for a project?

Contact Milano Gear for inquiries, support and more information about our elevator motors.

Request information
